Equipment introduction and use

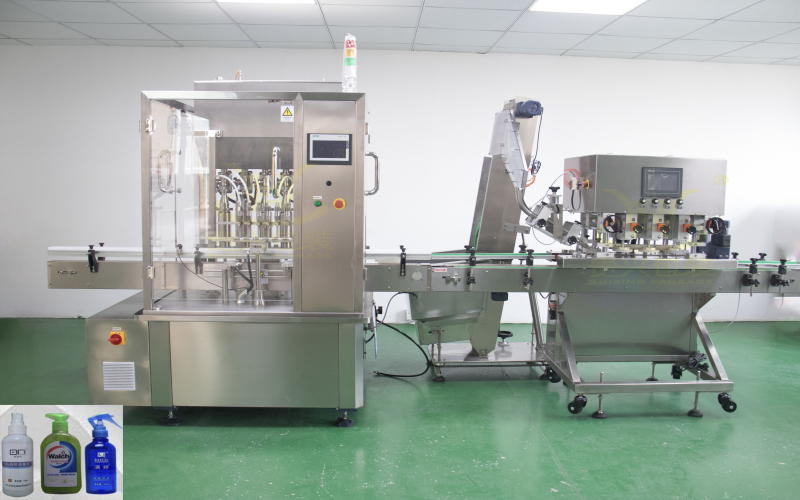

GX - YGXZ60 immune reagent production line is mainly used for filling screw cap label drugs and all kinds of chemical products such as automatic filling, it is mainly composed of unscramble bottle, filling part, vibration plate inside the plug and cover parts, mechanical hand cover prewhirl, mechanical transmission parts, automatic screw cap, electrical parts, marking label, filling system adopts an integral linear peristaltic pump filling, easy adjustable, high filling precision. Labeling system controlled by computer camera detection qualified sex, make function of eliminating unqualified products. By PLC programmable controller to the automatic control of related functions, the machine has the reasonable design, simple operation, high filling precision, long running stable performance and convenient maintenance, etc. Equipment is mainly made of high-quality stainless steel SUS304 material contact parts are made of high-quality stainless steel SUS316L comply with national GMP production standards of pharmaceutical packaging equipment.
The characteristics of
1. Painted surface adopts SUS304 stainless steel material, contact material parts adopt SUS316L high quality stainless steel, in line with the GMP requirements;
2. Taken the product design and reasonable structure, stable running, convenient change specifications, 75 decibels or less noise;
3. Taken the production speed is adjustable, one-piece linear peristaltic pump equipment with high precision, can be in touch screen easy adjustable setting formula;
4. U the whole production line operation chain control, convenient production, also can be stand-alone operation control, more intelligent production.
Technical parameters
| The serial number | Name | parameter |
1 | Applicable specifications | 0.1~1ML |
| 2 | Production capacity | 50 ~ 60 bottles/min |
| 3 | Filling accuracy | ≤±1% |
| 4 | Percent of pass | ≥99.5% |
| 5 | Electrical source | 220V 50Hz |
| 6 | Gas source | 0.5-0.8MPan |
| 7 | Work rate | 4.5kw |
| 8 | Machine net weight | ≈1200kg |
| 9 | Overall dimensions | L2100xW2450xH1800mm |
